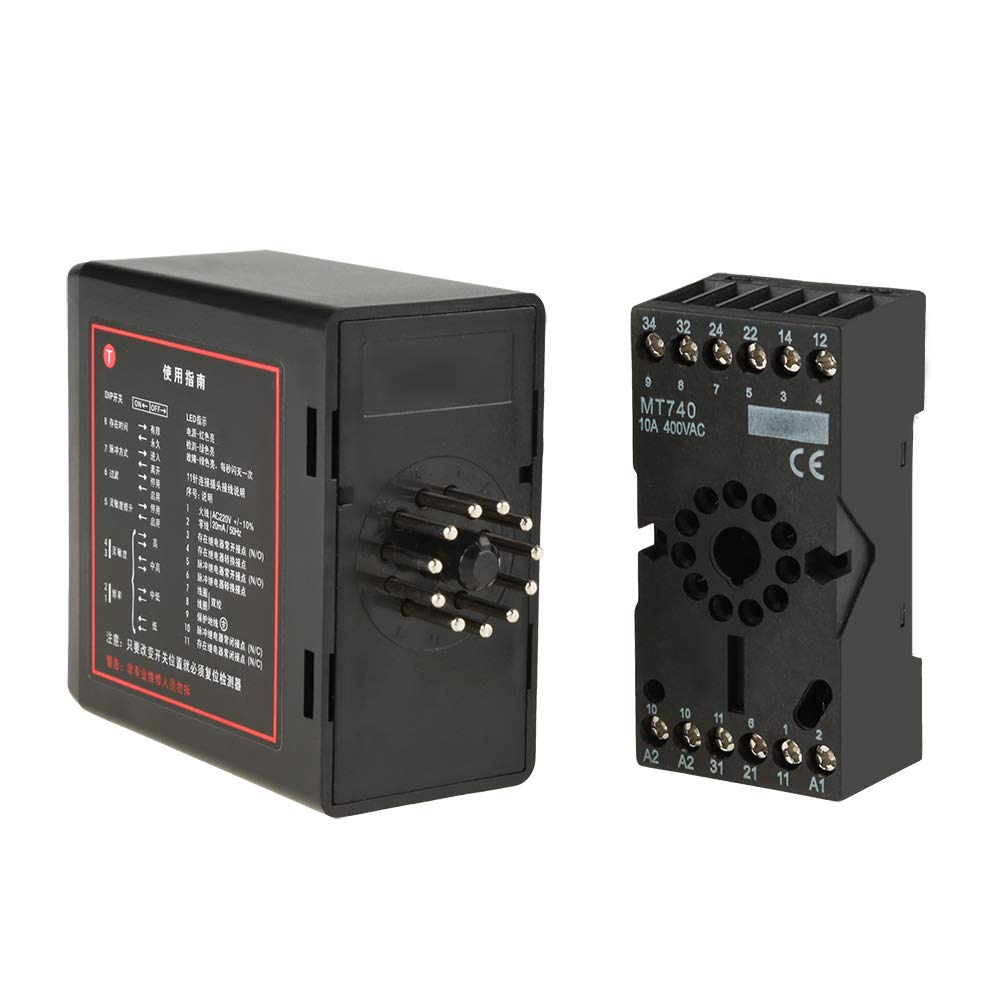

PD132 Single Channel Vehicle Loop Detector - Inductive Car Parking Sensor for Gate & Traffic Control System | Perfect for Parking Lots, Driveways & Automated Entry Systems

Specifications: Supply voltage: 220VAC; Power: 4.5VA; Output relays: 240V/5A Operating temperature: -20~65°C; Storage temperature: -40~85°C Frequency range: 20 kHz to 170 kHz; Temperature compensation: 50°C/ h time: 10ms; holding time: Unlimited/limited Sensitivity: Higher:0.02%; high:0.05%; low:0.1%; lower:0.5% Loop inductance: Total loop plus connection wiring:50?H to 1000?H. Ideal is 100?H to 300?H Loop connection: wiring 200 meters long. The total is less than 80hm, twisted at least 20 times per meter Relative humidity:<90%No condensation; Weight: 283g Package included: 1 × Vehicle Loop Detector ;1 × manual

SELECTABLE PULSE TIME The feature sets the length of time that the pulse relay will be energized for 1 second or 0.5 second, and the pulse relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop

RESET SWITCH The reset switch enables the detector to be manually reset during commissioning and testing. This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection

PRACTICAL The feature ensures detection of the vehicle will be maintained when the vehicle is parked over the loop for extended periods, more convenient to use

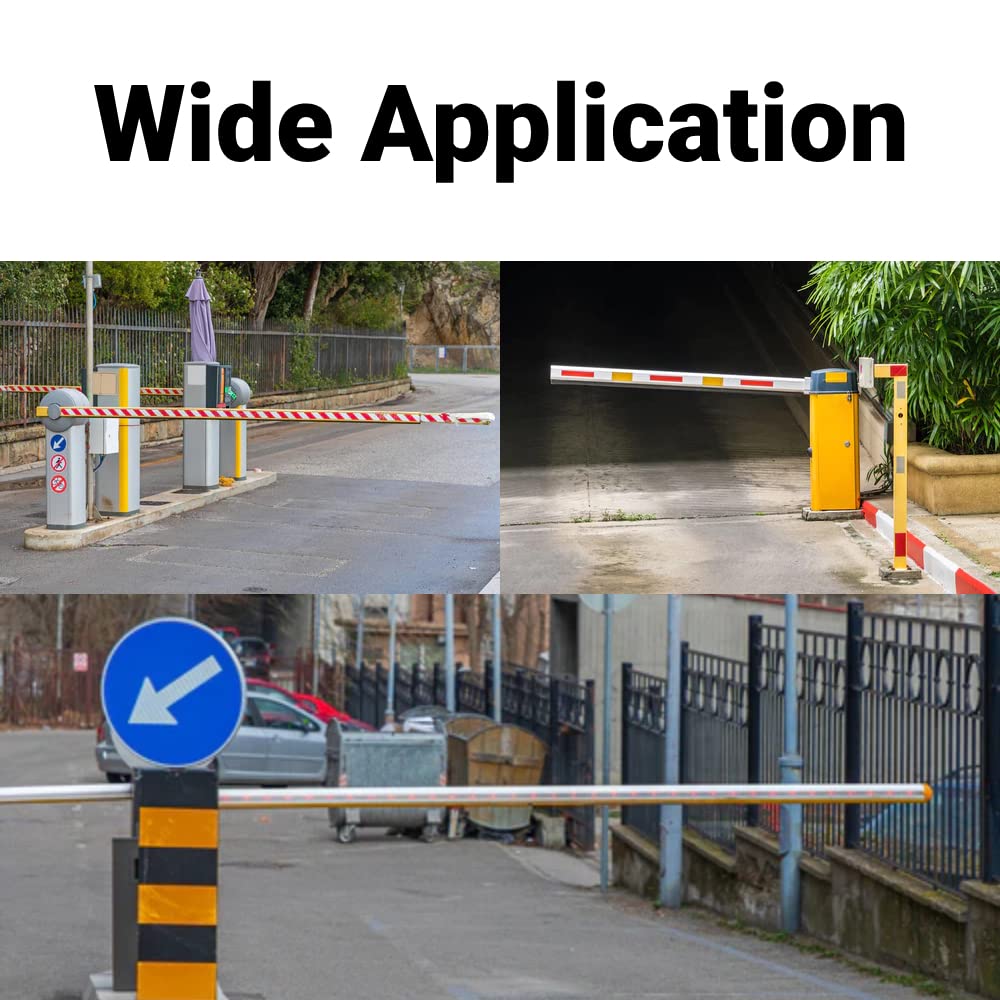

MAINLY USED The vehicle loop detector is mainly used to detect the existence and passing of vehicles, which could be used for car parking lot, gate, traffic control

AFTER SALE SERVICE Except the premium product we provide, we also provide considerate after sale service. Please us for any problem about our product. It is our pleasure to service you
