DSP-55 Plug-in Vehicle Loop Detector Kit for Parking Gates & Traffic Control - New Model with Enhanced Detection for Driveways & Security Systems

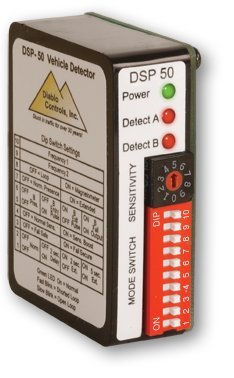

A plug-in detector which now has 4 levels of sensitivity. The DSP-50S detector will add a new dimension of simplicity to your plug-in detector requirements. This detector has been specifically designed to handle parking, drive-through and access control applications where solid-state outputs are required for both the Detect and the Fail outputs.

The DSP-55 is a compact vehicle detector that will operate on any voltage from 8 to 35 volts DCThe DSP-55 detector is intended to be a full-featured single channel detector that can work with both inductive loops as well as the new Diablo Controls mini-loops

Many features have been included which are normally found only on more expensive models. The small package is powered by a high-performance 8-bit microcontroller that does not skimp on performance.

The DSP-55 detector has a small footprint and was designed to retrofit into many existing locations that may require a detector upgrade. This allows maintenance personnel to carry only one detector to meet most, if not all, of their vehicle detection needs.

The detector uses a 10-pin Molex connector for its connections and has three solid-state (open-collector) outputs. The solid-state outputs allow for a smaller total package size, lower power consumption, and elimination of contact bounce.
