STEPPERONLINE Closed Loop Stepper Motor 1-Axis CNC Kit - 3.0Nm (424.92oz.in) Nema 23 Motor with CL57T V4.1 Driver (0-8.0A, 24-48VDC) | High Precision Motion Control for CNC Routers, 3D Printers & Laser Engraving Machines

Items in Kit 1 x 23HS45-4204D-E1000: 3.0Nm Closed loop stepper motor1 x CL57T: Nema 23/Nema 24 Closed loop stepper motor driver V4.11 x RS232 Debugging Cable1 x CE2-M2-20: 1.7m motor and encoder extenstion cables Closed Loop Motor and Driver Specification Part Number 23HS45-4204D-E1000 Number of phase 2 Holding Torque 3.0Nm(424.83oz.in) Rated Current/phase 4.2A Phase Resistance 0.82ohms Inductance 3.6mH ± 20%(1KHz) Encoder Resolution 1000PPR(4000CPR) Encoder Output Current 100mA Encoder Output Frequency Max 60kHZ Driver Output Peak Current 0~8A Driver Logic Signal Current 7~16mA (Typical 10mA) Driver Input Voltage +24~48VDC (Typical 36VDC) Driver Pulse Input Frequency 0~200kHz Driver Dimension 116*69.2*26.5mm/4.57"*2.7"*1.04" Motor Dimension Warning: PLEASE NOTE: The thick black wire can be used for shielding, but it is not required, so you can leave it unconnected.Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor. Protection and Troublesshooting 1-CL57T-S12-V41 1-CL57T-S20-V41 1-CL57T-S30A-V41 1-CL57T-S30-V41 1-CL57T-S40-V41 Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 6 5.0 out of 5 stars 4 4.3 out of 5 stars 19 3.1 out of 5 stars 5 5.0 out of 5 stars 3 Price $75.00$75.00 $81.00$81.00 $85.99$85.99 $87.99$87.99 $107.99$107.99 Nema Size Nema 23 Nema 23 Nema 23 Nema 24 Nema 24 Holding Torque 1.2 Nm(169.97 oz.in) 2.0Nm(283.22 oz.in) 3.0Nm(424.83oz.in) 3.0 Nm(424.92 oz.in) 4.0 Nm(566.56 oz.in)) Rated Current/phase 4.0A 5.0A 4.2A 5.0A 5.0A Voltage 24 ~ 50VDC 24 ~ 50VDC 24 ~ 50VDC 24 ~ 50VDC 24 ~ 50VDC

Items in Kit

1 x 23HS45-4204D-E1000 3.0Nm Closed loop stepper motor

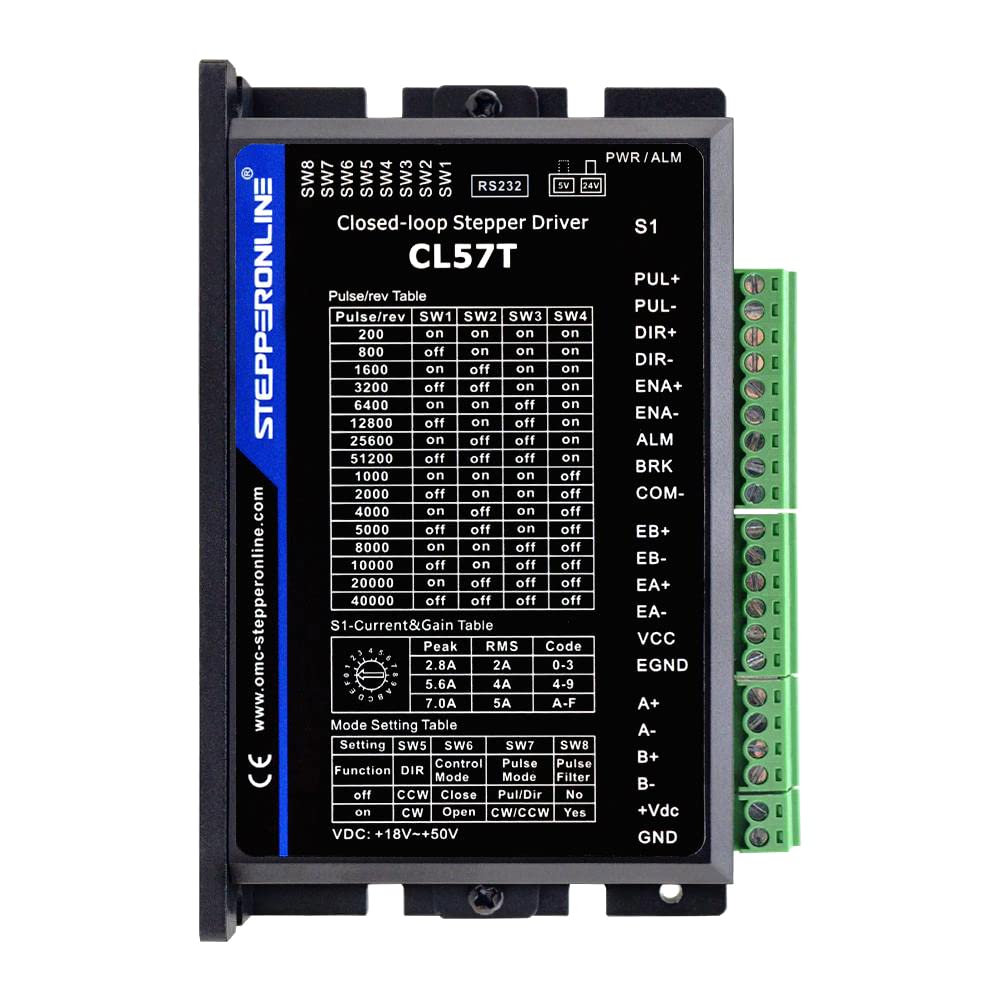

1 x CL57T Nema 23/Nema 24 Closed loop stepper motor driver V4.1

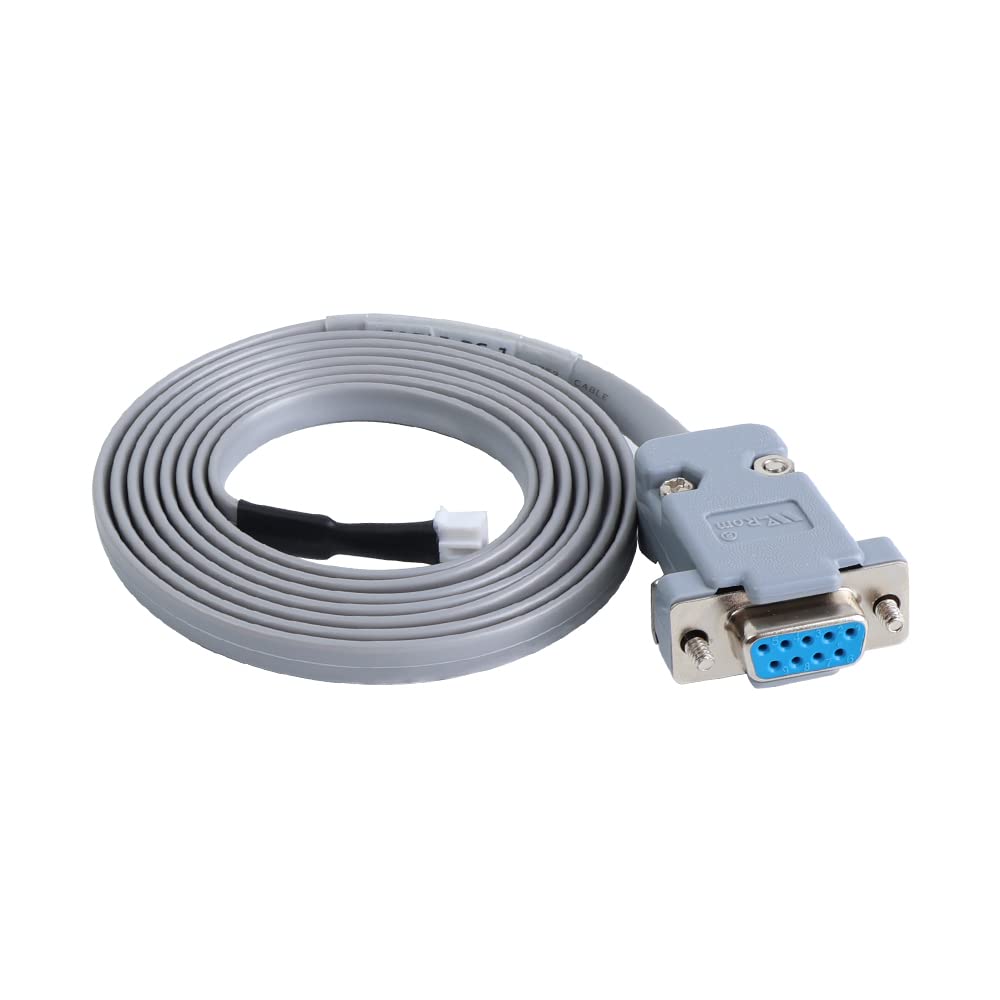

1 x RS232 Debugging Cable

1 x CE2-M2-20 1.7m motor and encoder extenstion cables

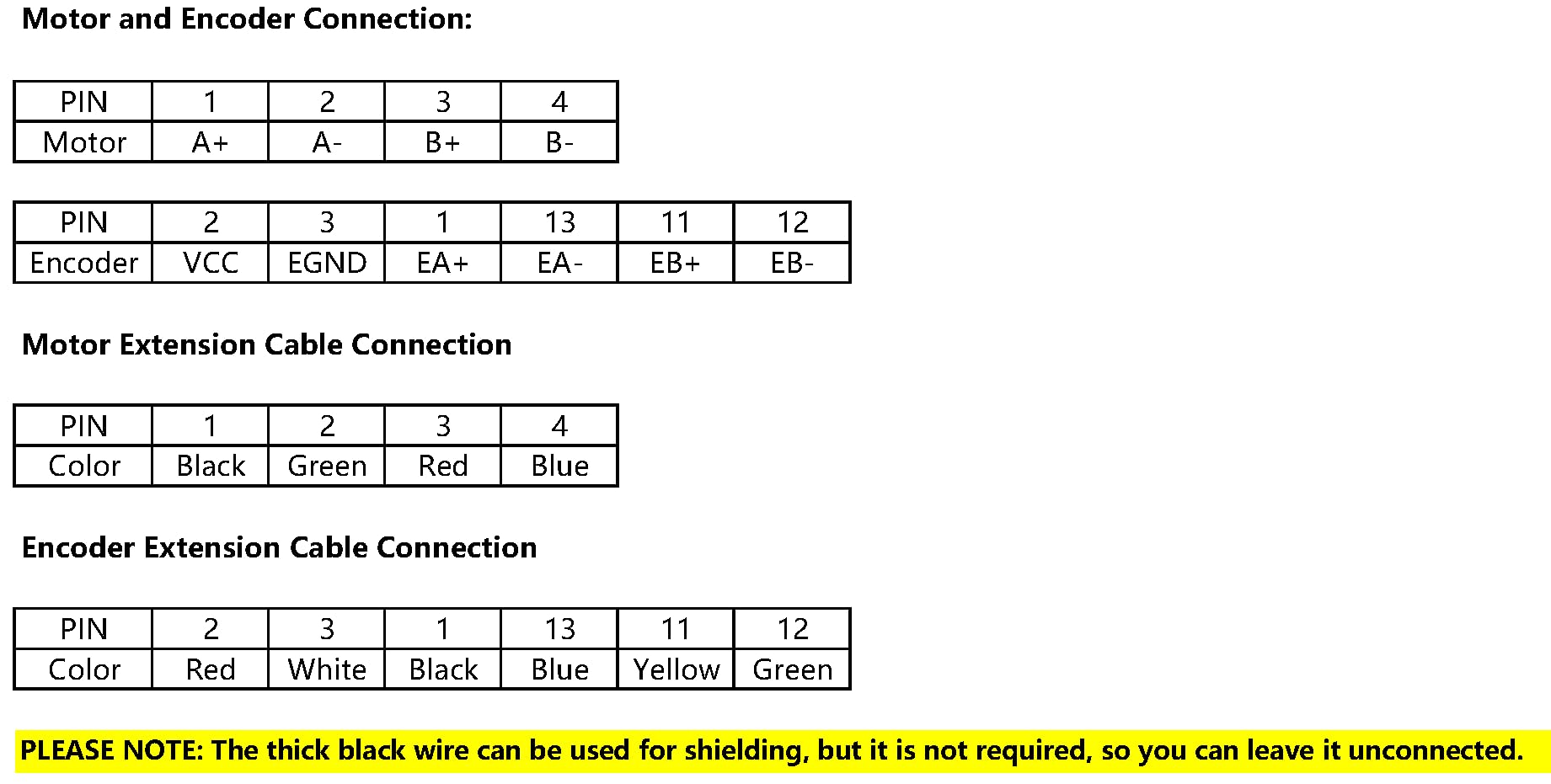

PLEASE NOTE The thick black wire can be used for shielding, but it is not required, so you can leave it unconnected

Suit for 3D printer/CNC machine/Carving Machine/Dispenser/Automation Application

100% service satisfactory. We provided this stepper motor kit with 30 days free replacement or refund, 1 year warranty and whole life customer service from the date of purchasing.
